Home/Products /Solar Fixed Structure /Seasonal-Tilt Mount Structure
Solar Fixed Structure · Seasonal Tilt

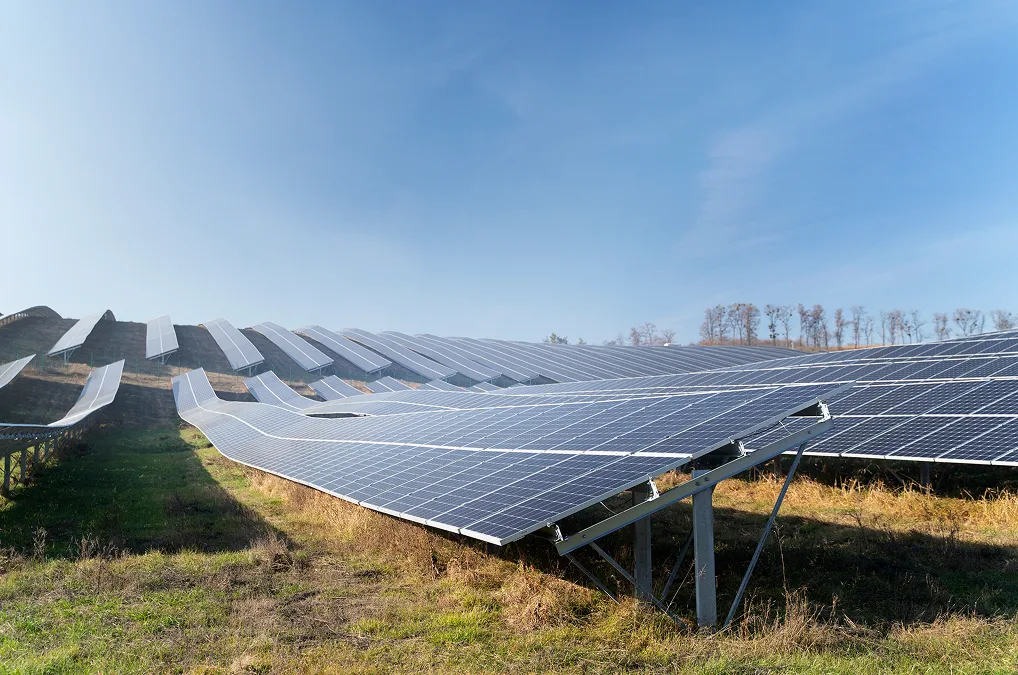

Seasonal-Tilt Mount Structure

Seasonal tilt mounting in independent row 1P and 2P for optimised annual output.

Seasonal-Tilt Mount Structure SS-ENERGY / SEASONAL TILT
5° to 35° seasonal
Tilt
up to C6
Corrosion
1P / 2P
Layout
System overview

We manufacture high performance seasonal tilt solar mounting structures for optimised energy generation across changing sun angles throughout the year. Suitable for 1P and 2P independent row configurations, they provide a cost effective alternative to full tracking while improving annual solar output.

Built for long term performance and structural strength, our seasonal tilt systems support portrait and landscape orientations in zinc magnesium alloy coated steel, HDGI, Galvalume and POSMAC with corrosion resistance up to C6 grade. They withstand harsh environmental conditions while minimising installation and maintenance costs.

With extensive OEM manufacturing expertise, our structures are engineered for durability, low maintenance and competitive project costs, making them ideal for small to utility scale solar installations.

Product details

Technical features

  • Bolted design with serrated lock nuts for enhanced stability
  • HDG and Galvalume coated steel
  • High tensile grade 8.8 fasteners with zinc flake coating
  • Sigma Plus post profiles (>150 mm)
  • Cee Plus rafter and purlin profiles with stiffeners (>120 mm)
  • Foundation options: concrete pile, concrete pad, or ramming
  • Approx. weight 26 to 28 tons/MW for 330W modules (2P configuration)
  • Seasonal tilt mounting structure with optional tracker ready design
  • Compatible with 335W, 450W, 530W, 545W, 645W Poly/Mono PERC and bifacial modules
  • Tilt angles: 5°, 15°, 20°, 25°, 35°
  • Modular and customizable table length based on string configuration
  • Manual actuator for seasonal tilt optimization
Start a project

Bring us the load case.

For utility-scale tracking system and mounting structure enquiries, send a project brief / capacity requirement. Our team responds within one working day.
